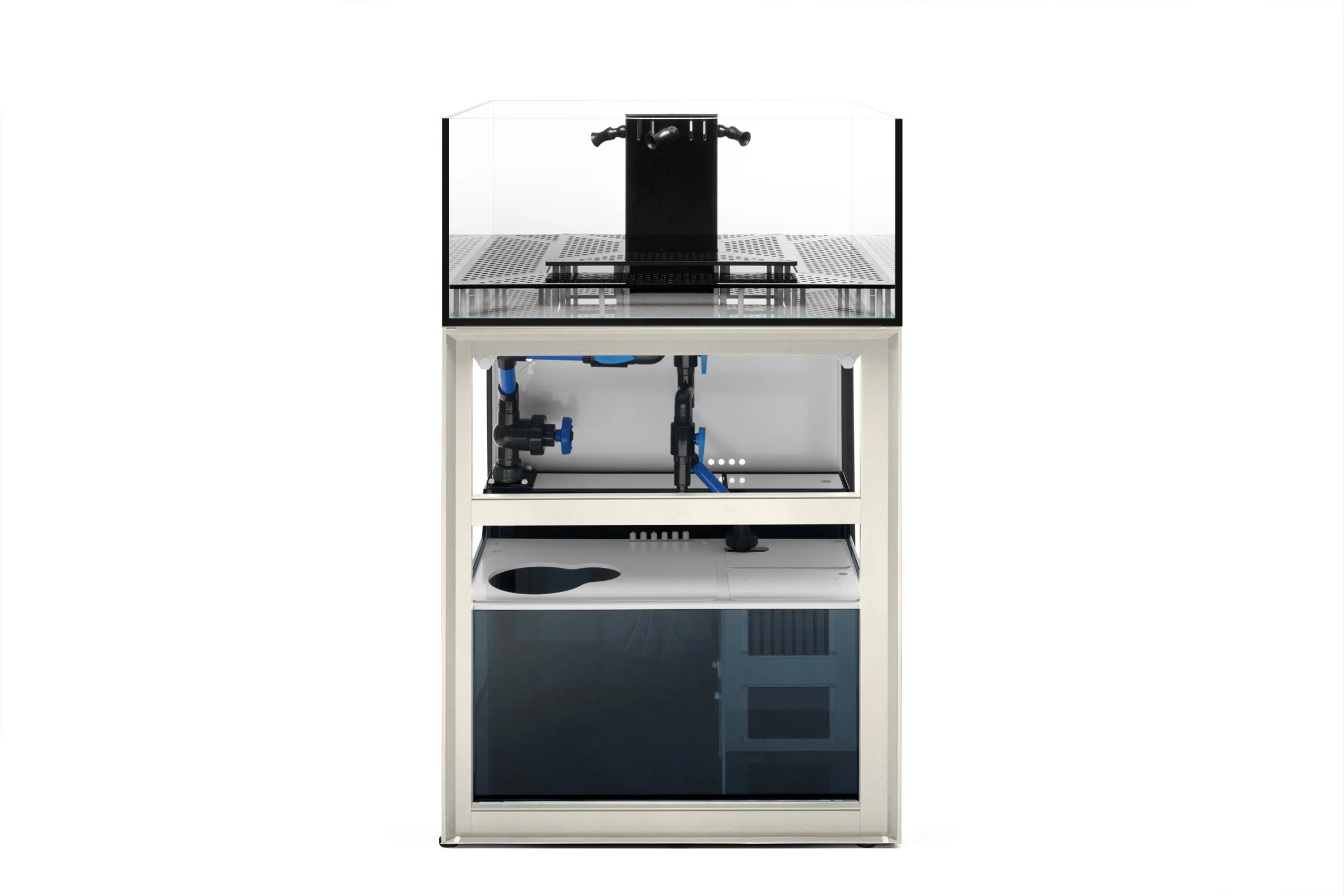

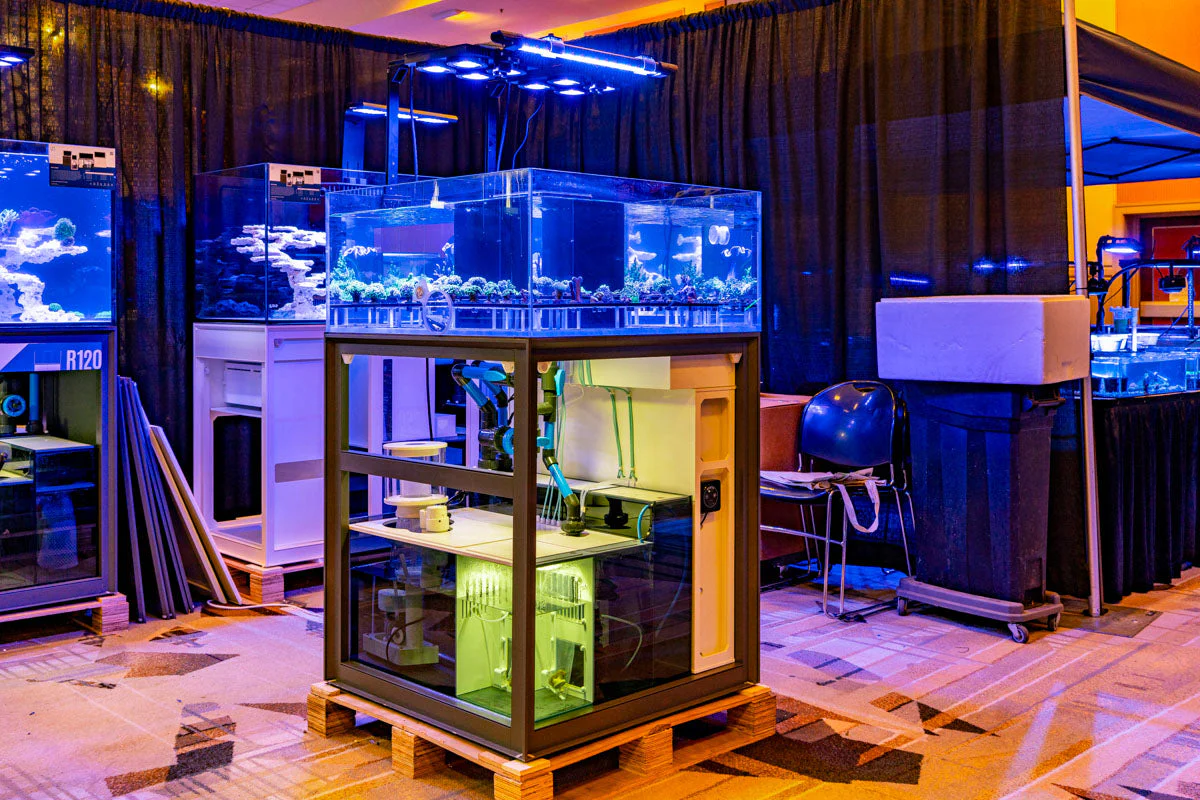

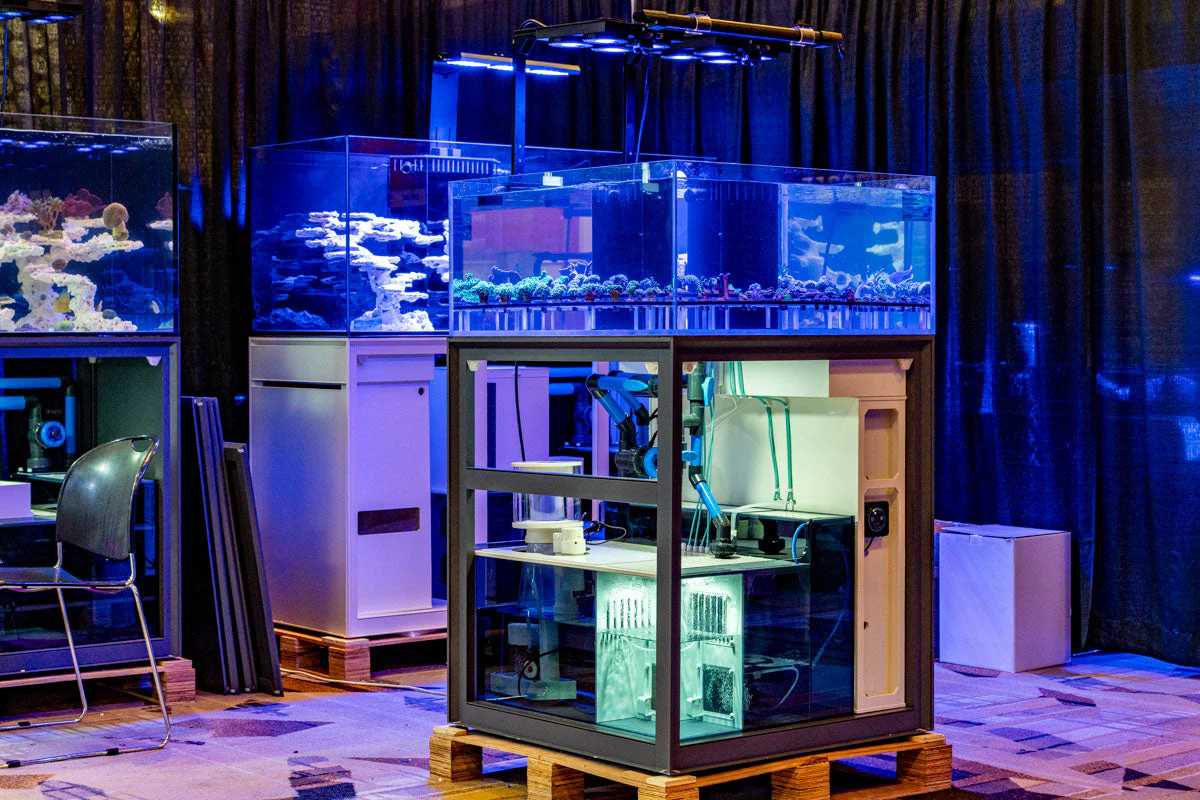

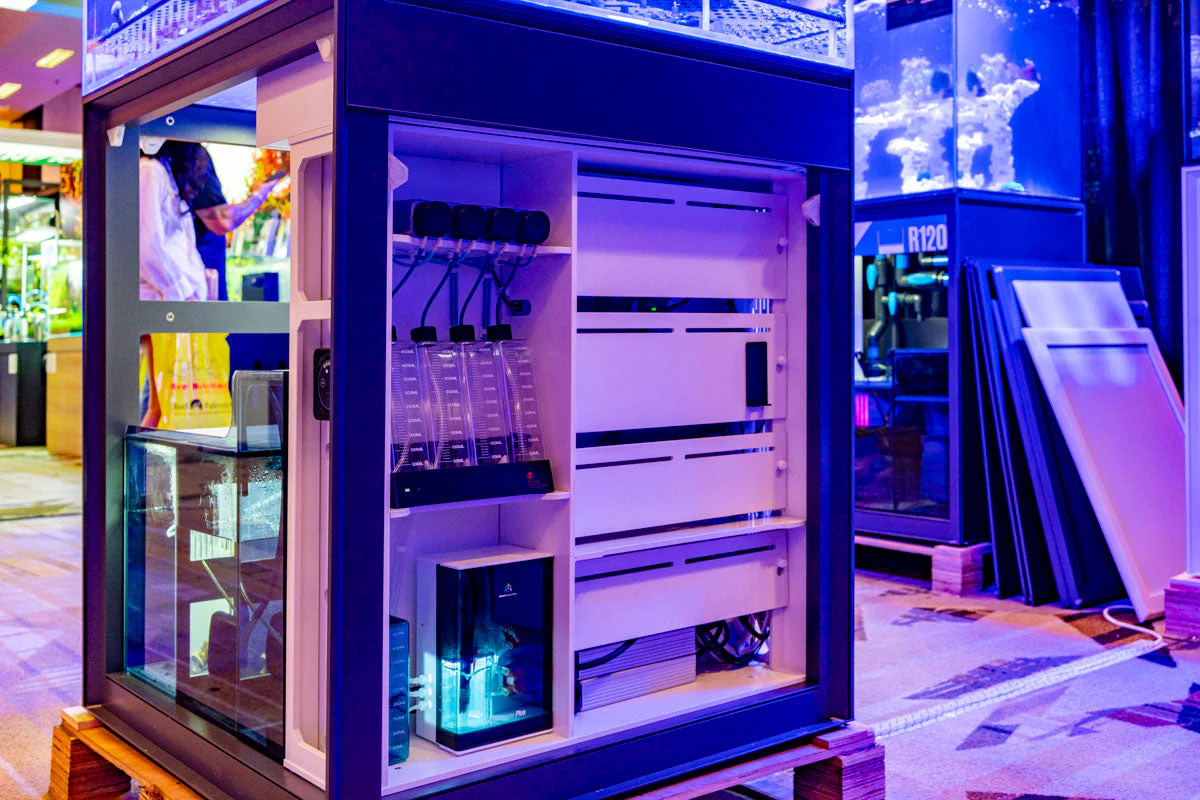

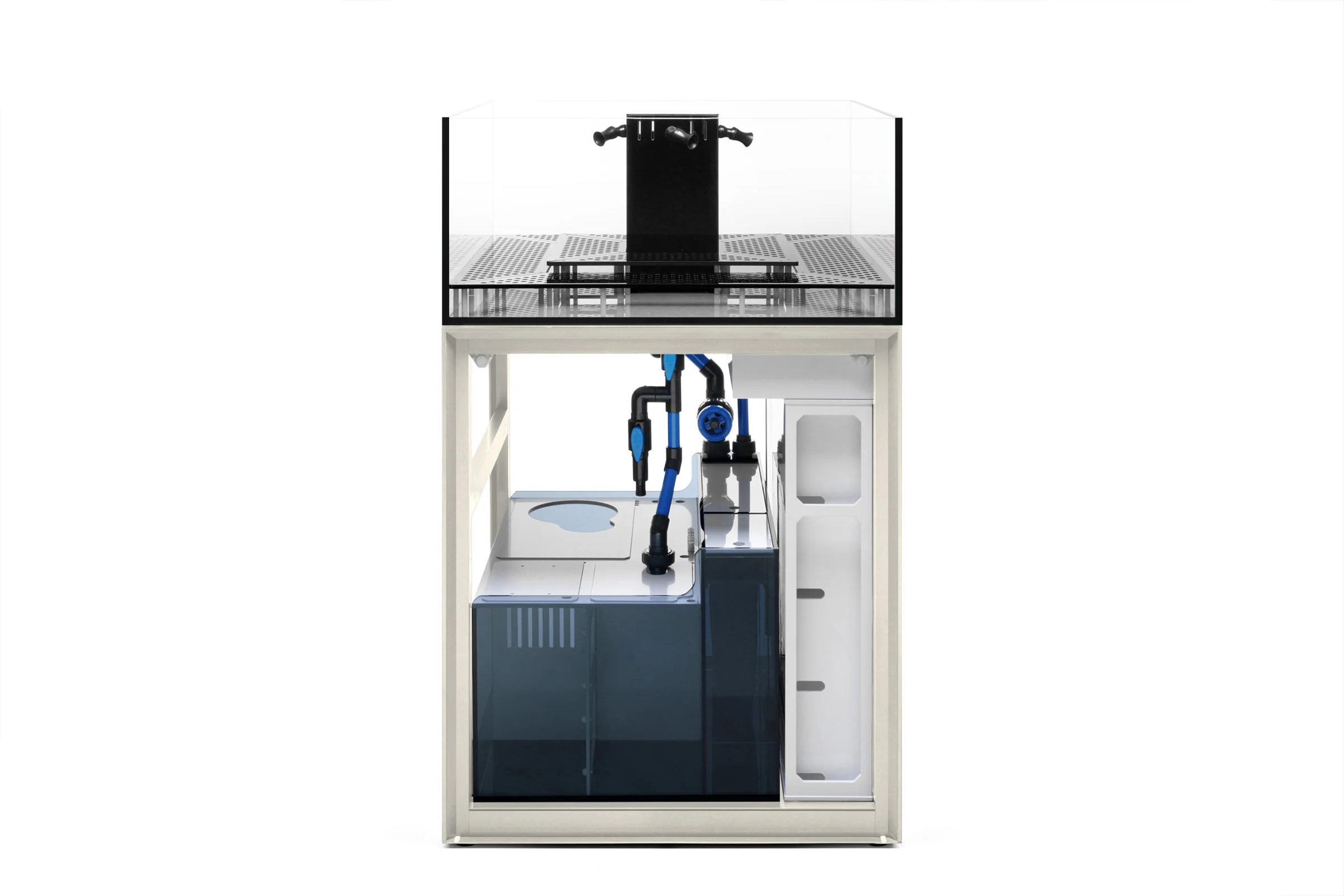

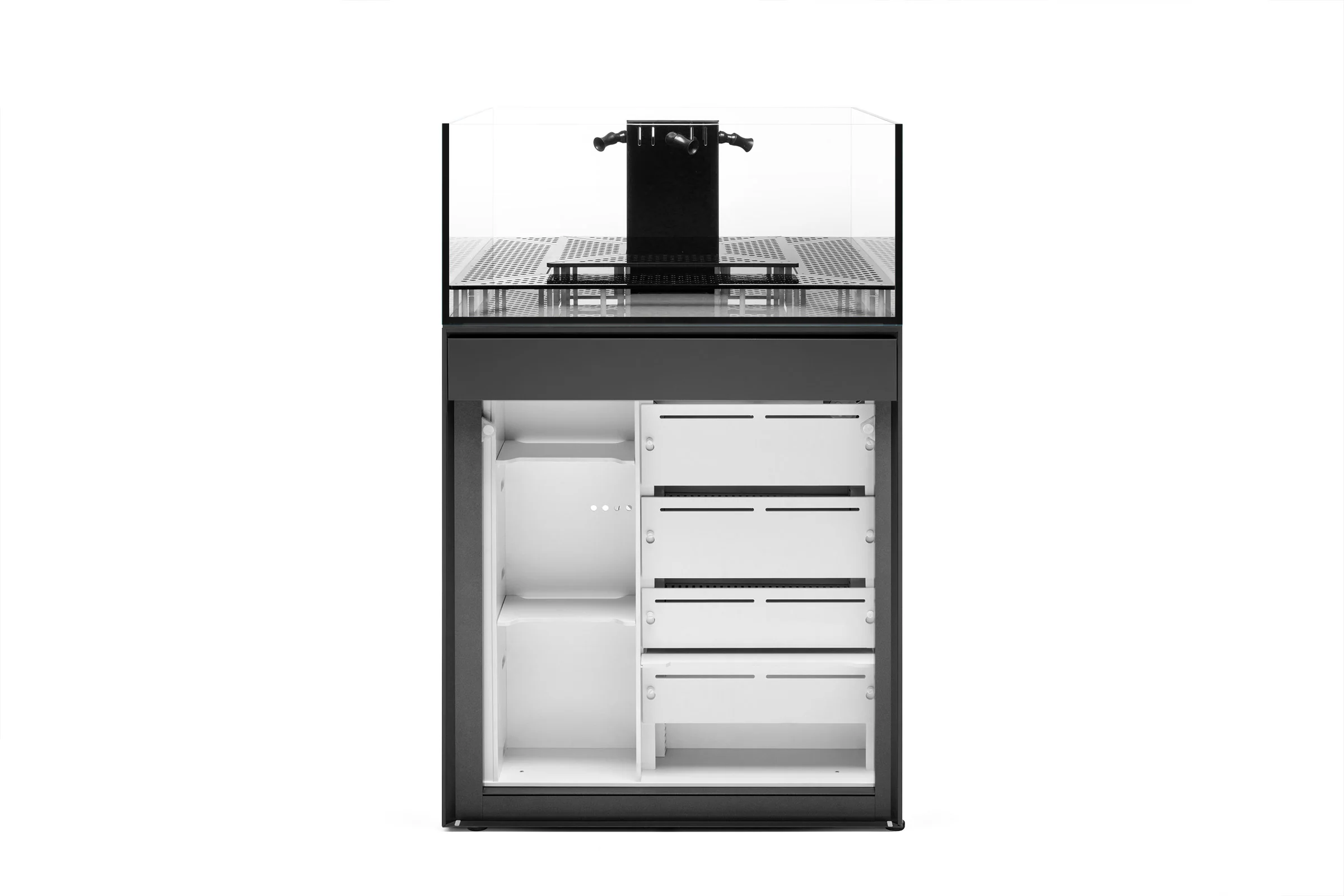

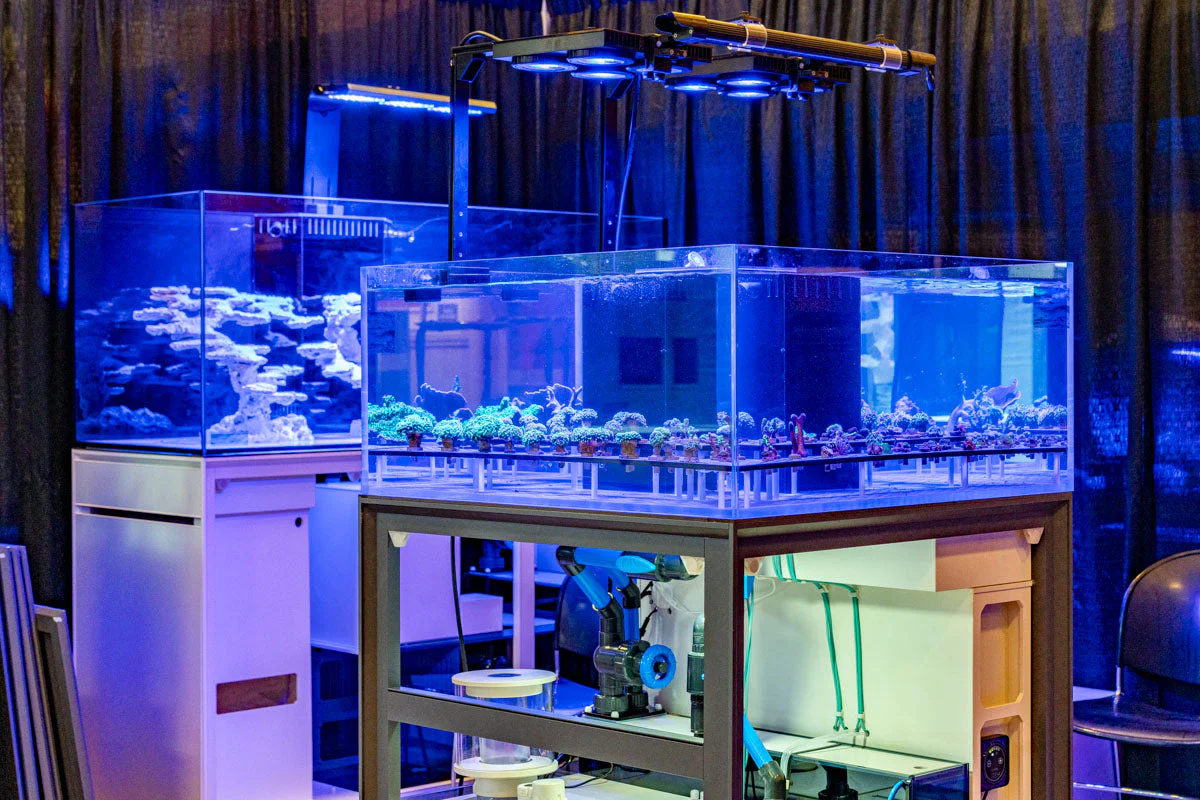

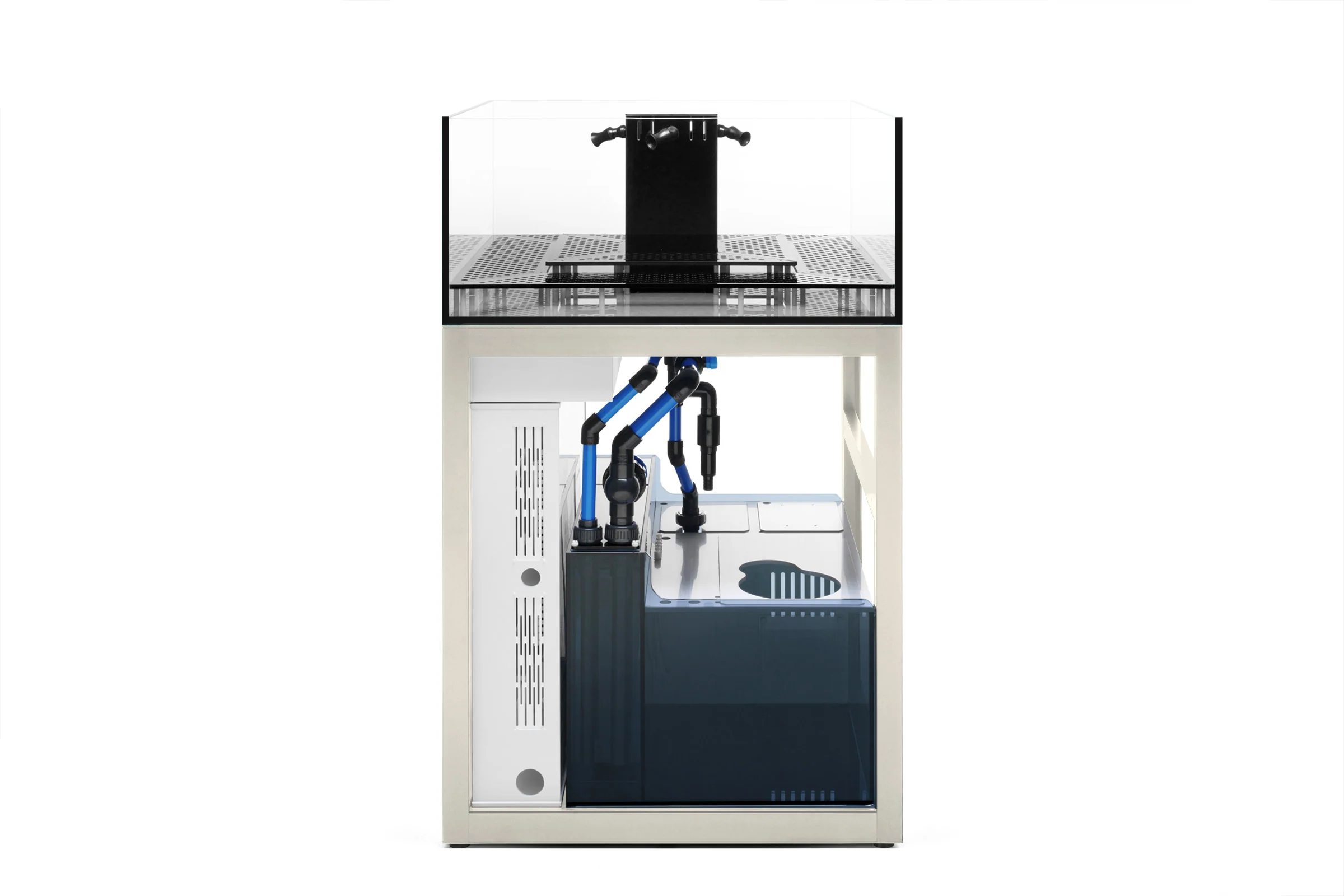

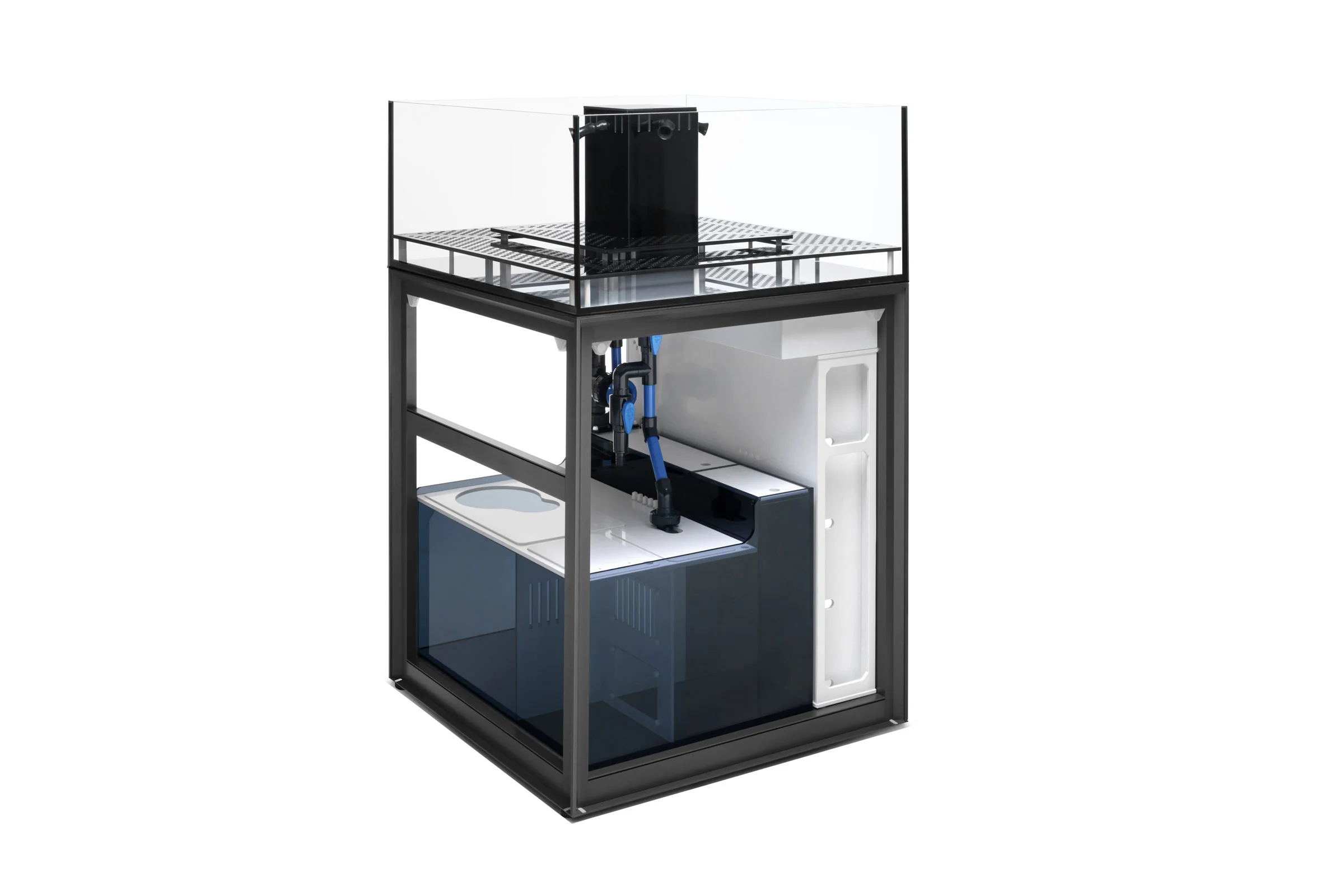

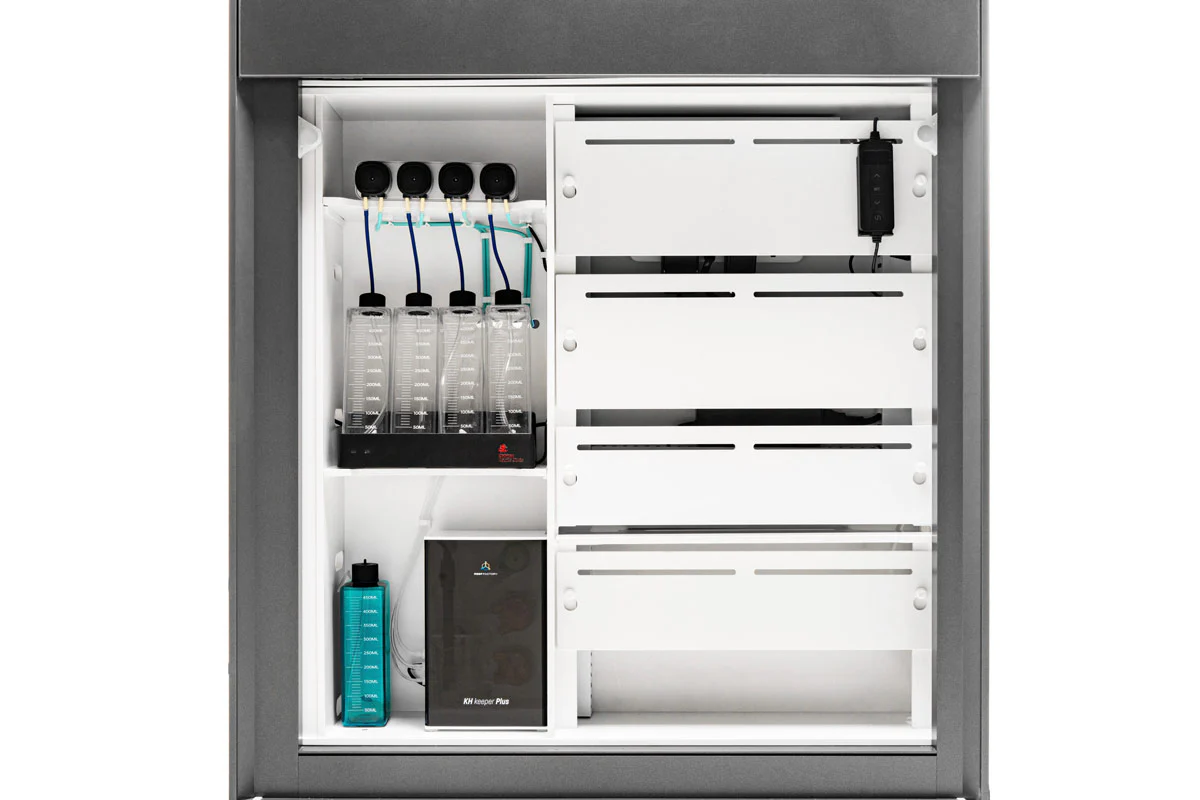

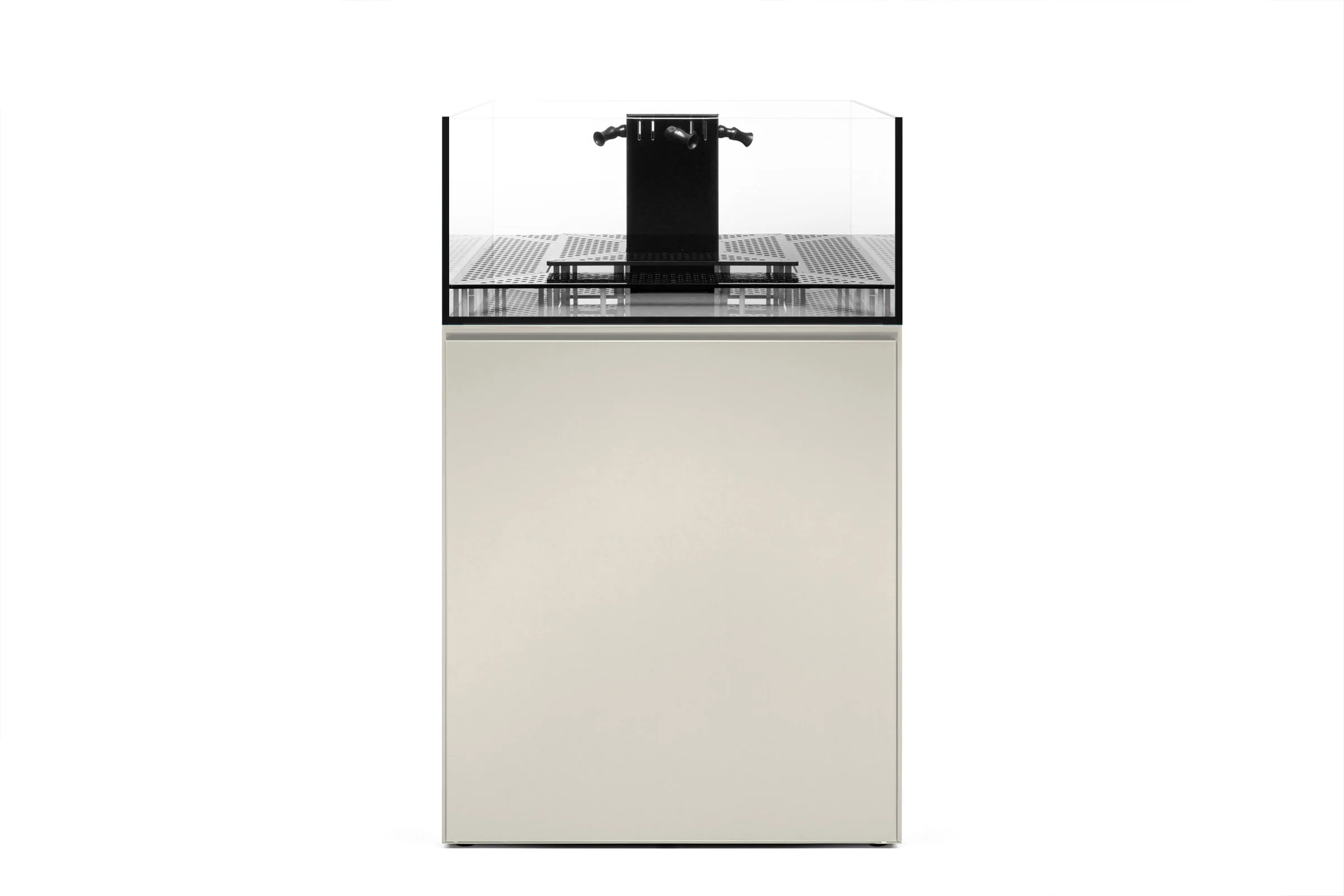

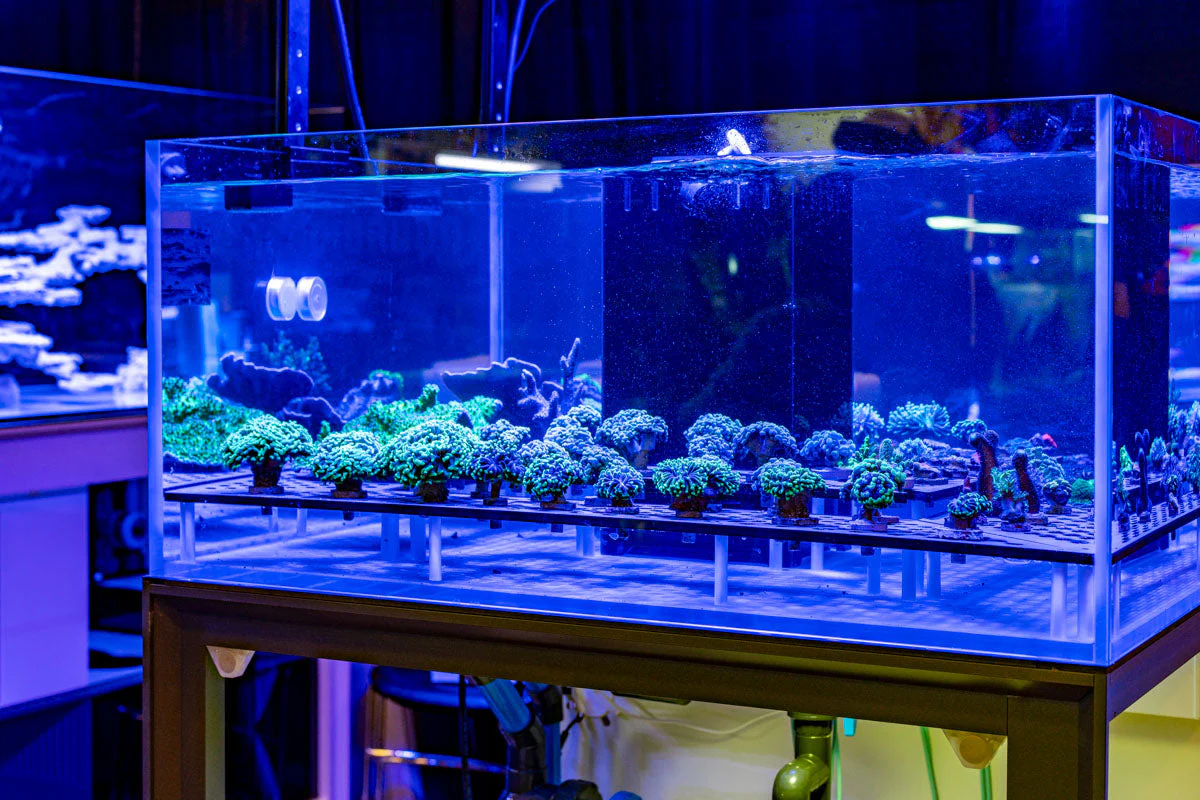

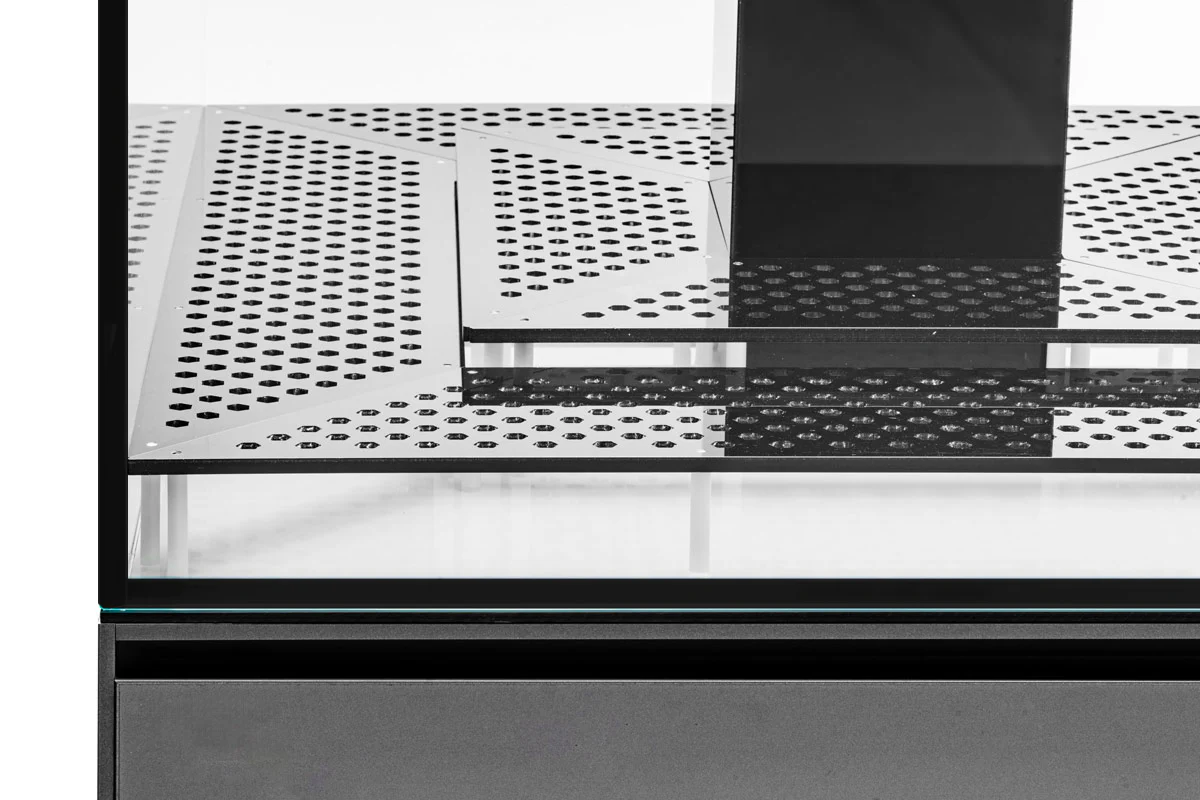

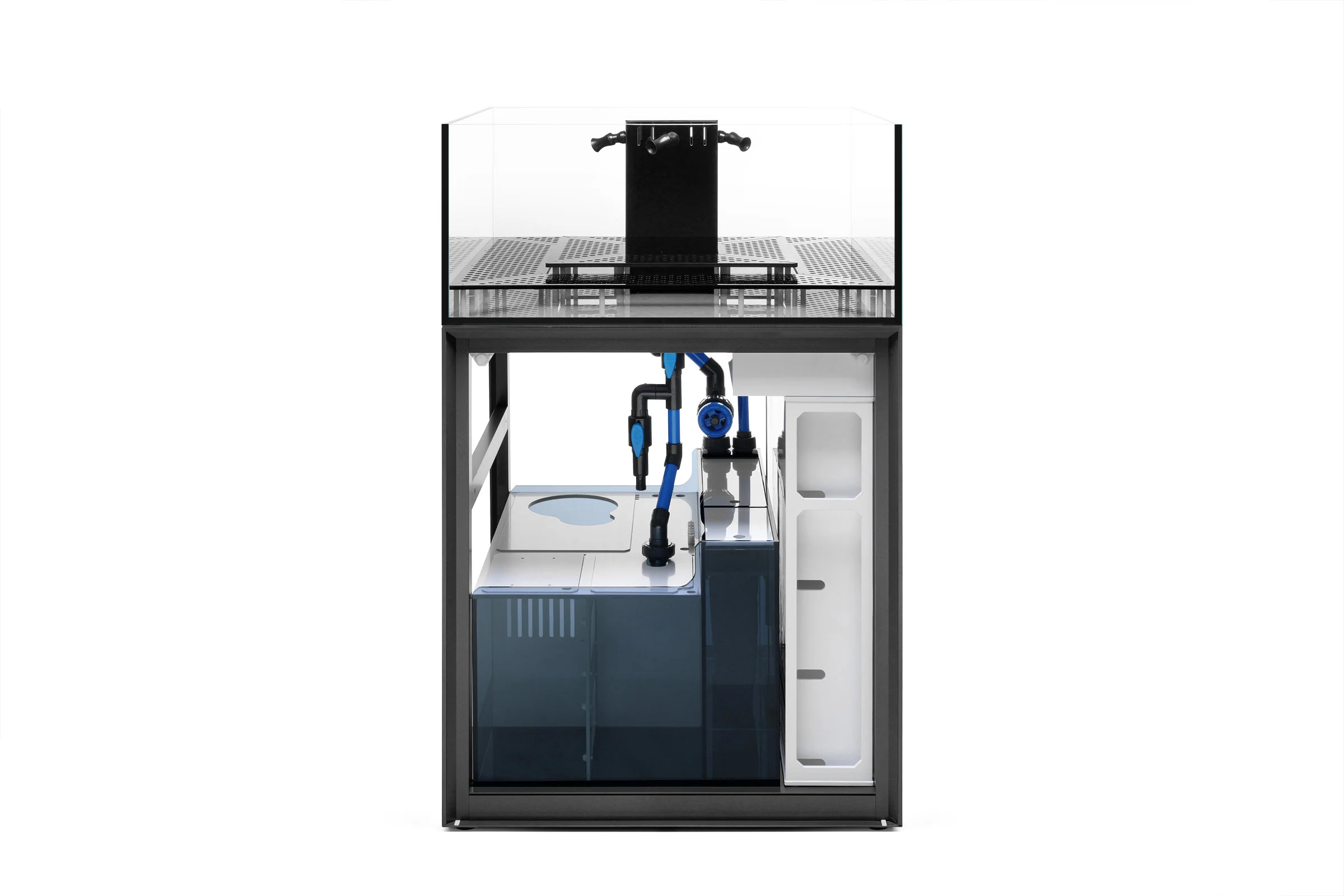

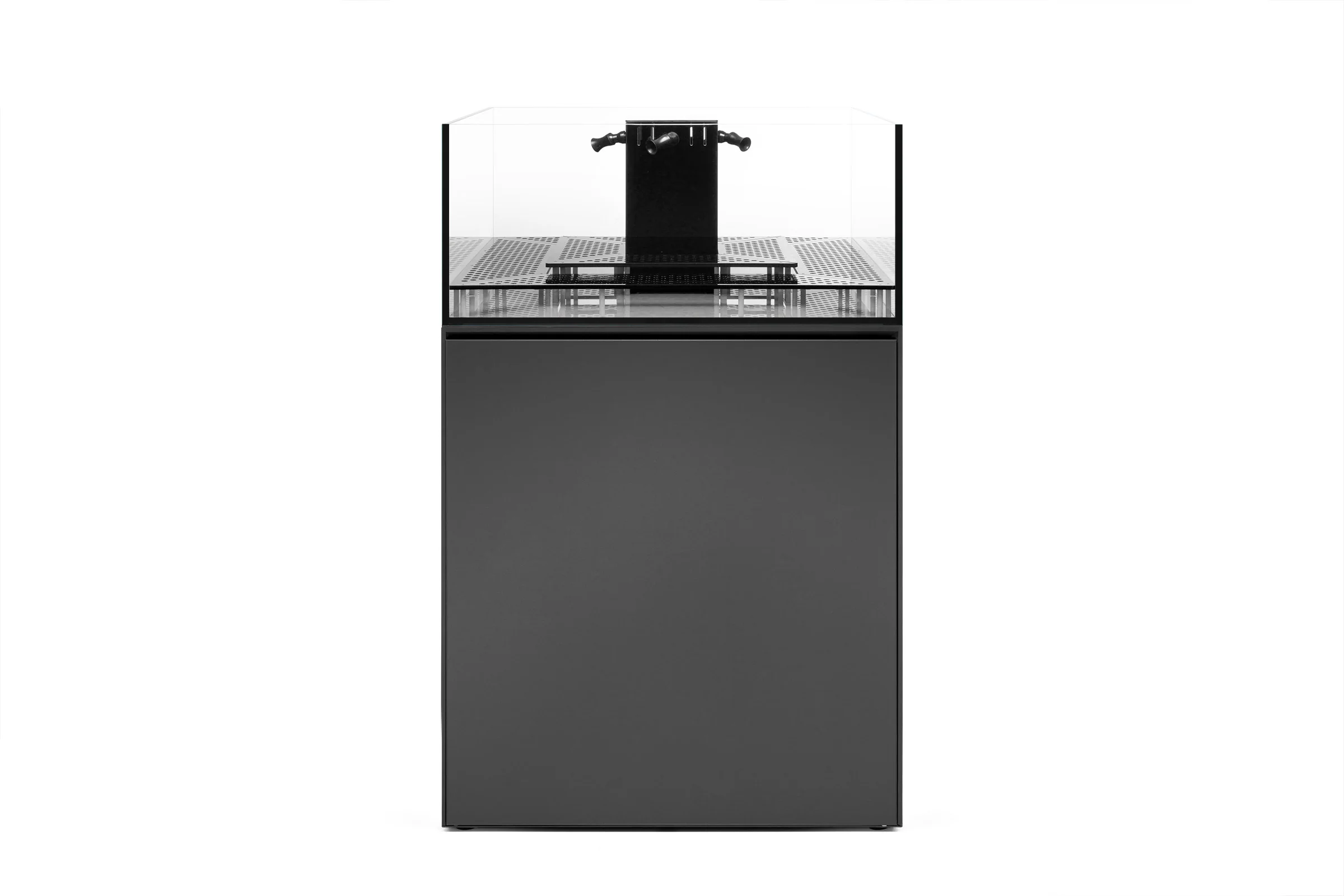

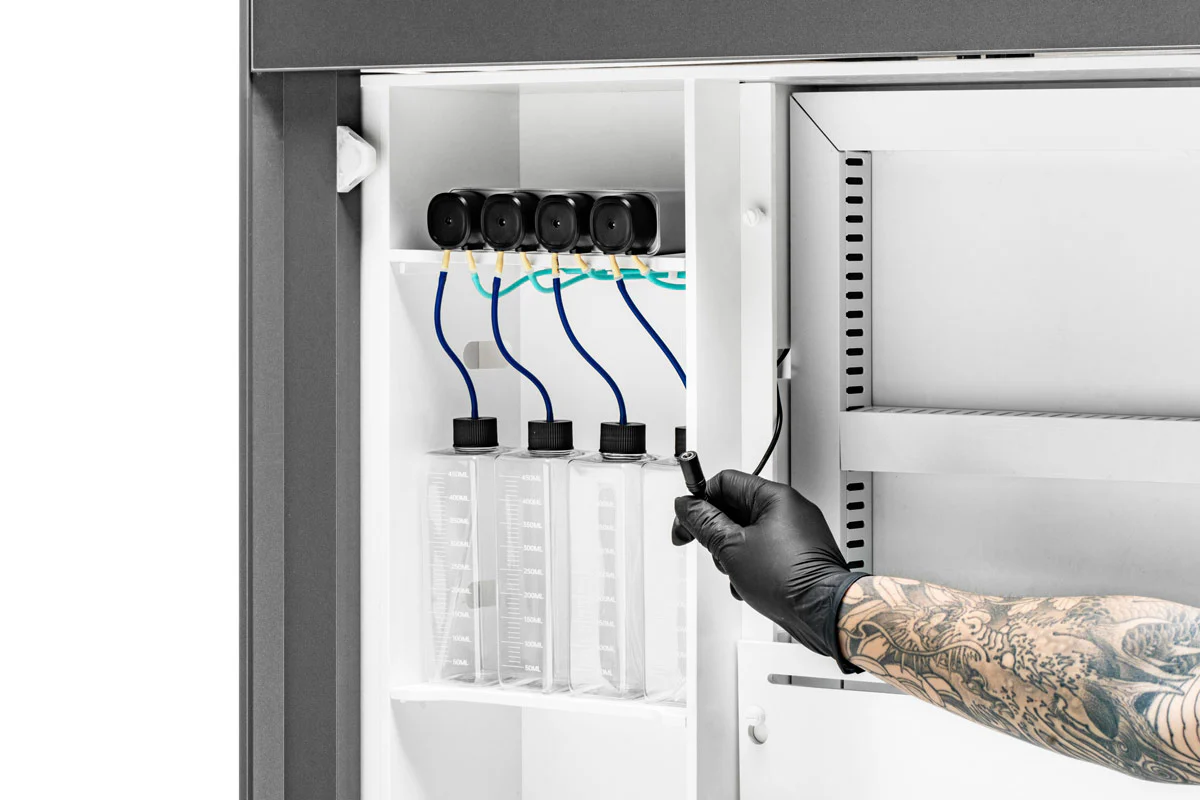

The R80 is a unique model of the existing R Systems line up. It features a center overflow with 360 degrees of water circulation. The tank itself was designed to accommodate coral frags by using the included Frag Trays. It serves as an excellent way to display and store numerous coral frags without distraction. The patent pending aluminum stand is built the same way as the other R Systems and feature a similar built-in sump, electrical tower, and storage drawer design. The R80 also features a unique glass sump with an integrated ATO reservoir as well as designated dosing container shelves within the electrical box.

Key Features and Important Notes

• 1 year warranty

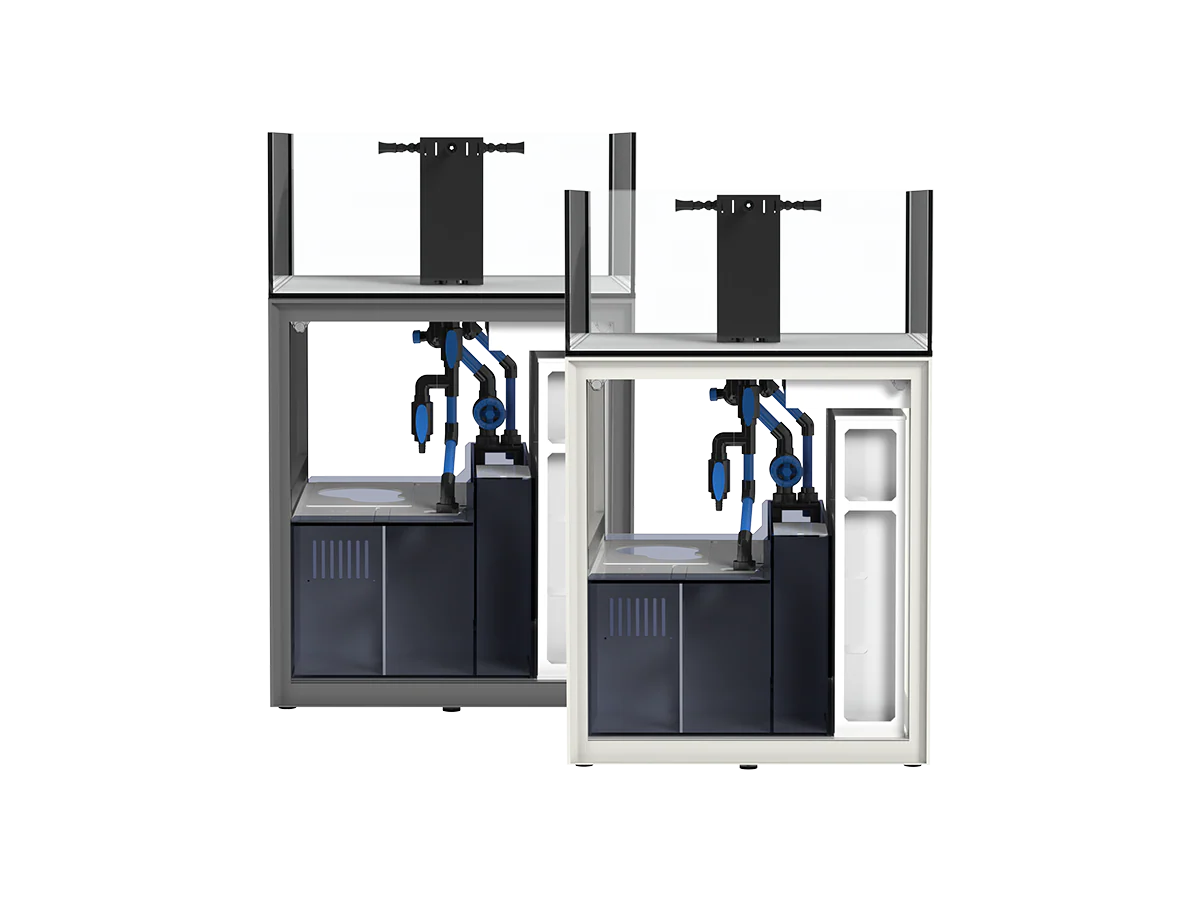

Reef Systems are available in 6 tank sizes and two stand colors

• UNS R60
• UNS R80
• UNS R90
• UNS R120
• UNS R150
• UNS R180

Product Specifications

Tank Specifications

• Dimensions: 31.5 x 31.5 x 14.17" / 80 x 80 x 36CM
• Glass Thickness: 12mm
• Volume: 52 gallons / 192L
• Total Volume (Including Sump): 76 gallons / 277L

Stand Specifications

• Dimensions: 31.5 x 31.5 x 35.43" / 80 x 80 x 90CM
• Door Count: 4
• Storage Drawers: 1

Sump Specifications

• Dimensions: 21.3 x 28.74 x 17.72" / 54.1 x 73 x 45CM
• Volume: 24 gallons / 85L
• Filter Bags: 3
• Total Chambers: 4

Accessory Clearance

• Chamber 1: 3.94 x 13.58" / 10 x 34.5CM
• Chamber 2: 9.45 x 16.73" / 24 x 42.5CM
• Chamber 3: 6.3 x 8.66" / 16 x 22CM
• Chamber 4: 6.69 x 7.48" / 17 x 19CM
